The Katla HD for the 2003+ Ram 2500/3500 combines both modern styling and rugged durability in one great looking package.



SKU N/A Categories , , , Tags , , , , , ,

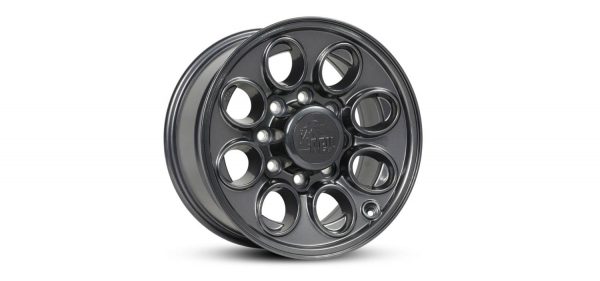

Ram Katla Wheel

The Katla was inspired by AEV’s iconic Savegre wheel for the JK Wrangler but was converted for use on 3/4 and 1-ton Ram pickups. This tried-and-true design is not only attractive, but it can also sustain exceptionally large loads. Recessed valve stems, a trademark feature of AEV, give further protection from pebbles and other trail hazards. The 178.5 Katla has Ram-specific backspacing for optimum fitment with or without original fender flares when running up to a 37″ tyre. Customers who are using AEV’s Highmark Fender Flares with 40′′ tyres will need the 1710 fitting.

*Keep in mind that the tyre size listed on the sidewall of a tyre is simply a rough estimate of its size and may not be accurate. Larger tyres may rub fenders, chassis, and control arms during steering and/or suspension movement, while smaller tyres may rub fenders, chassis, and control arms.

Please note: Powder coating aluminum wheels is not recommended by AEV as a general safety measure. The powder coating process’ heat range and duration may overlap with the heat treatment and ageing of cast or forged aluminum wheels. As a result, AEV’s lifetime structural warranty does not apply to powder-coated wheels. All colour changes and/or repairs should be done with automotive liquid paint.


  • A356/T6 cast aluminum construction
  • 4,100 lbs. load rating – tested w/ a 40” tire
  • Compatible with Tire Pressure Monitoring System (TPMS)
  • Recessed valve stems for added protection
  • Tested to stringent SAE J2530 standards
  • Molded AEV Center Cap included
  • Lifetime structural warranty

Additional information

Weight N/A
Dimensions N/A
Size & Colour

17×8.5 Onyx, 17×8.5 Black, 17×10 Onyx, 17×10 Black
