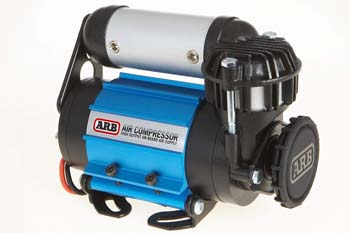

ARB On-Board High Performance 12 Volt Air Compressor (CKMA12)


ARB On-Board High Performance 12 Volt Air Compressor (CKMA12)

SKU 22178 Categories ,


This compressor is permanently fixed in your vehicle and comes complete with a full wiring loom, air locker solenoid plug-in contacts, mounting hardware, a strengthening bracket, and a high-quality compressor isolating switch. With the installation of the ARB Pump-Up Kit (part #171302), this compressor can activate air lockers and do other tasks like inflating camping goods.

So, what distinguishes this compressor? It’s compact enough to fit into even the tiniest of spaces and quiet enough to use in the cab. It has adequate power to blow up four 35″ – 37″ tyres in a single duty cycle and takes a little over two minutes to air up 35″ tires. It also works. This device has performed admirably in ovens, freezers, underwater, and in the silty dust of the Simpson Desert.

Kit Includes:

  • Fully assembled and bench-tested air compressor
  • Complete snap together wiring loom
  • OEM quality compressor isolating switch
  • Air Locker™ supply rated pressure switch
  • Relocatable splash resistant air filter with washable high-flow sintered bronze filter cartridge
  • Mounting hardware with reinforcing backing plate
  • Comprehensive photo illustrated installation guide



  • Compact design makes it the highest flowing compressor in its class (voltage vs size)
  • Fully sealed components for moisture and dust
  • Pressure switch controlled air manifold systems specially designed to suit ARB Air Locker™ equipped vehicles
  • Hard anodized cylinder bore and PTFE (Teflon) impregnated carbon fibre piston seal for reduced friction and maximum trouble-free life
  • The new anodized mounting bracket dissipates motor heat and allows the compressor to be repositioned at 180°
  • Anti-vibration/sound deadening mount
  • Relocatable splash resistant air filter assembly for cleaner, cooler air supply
    and versatile waterproof air intake positioning
  • High density, high flow washable sintered bronze air filter element
  • Maxi-Fuse equipped for professional in-line circuit protection
  • The motor is 100% ball bearing equipped with a unique linear brush pre-load system for extra long life, low heat and quiet operation
  • The compressor piston is equipped with a German-made high shock rated cylindrical roller bearing
  • Constructed entirely of lightweight, high strength engineering grade materials, including military and aerospace-grade components
  • Over-pressure safety valve equipped
  • The motor is internally thermal protected against extreme temperature damage


Additional information

Weight 10 lbs
Dimensions 9 × 9 × 5 in
